Description
Function and features

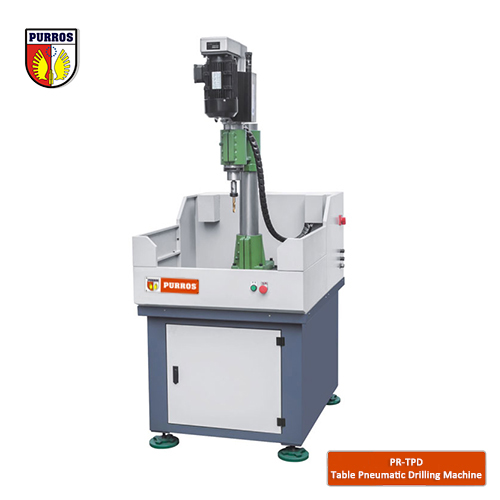

PR-TPD5 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Product Details
| MODEL | PR-TPD5 | PR-TPD5L |
| Machine tool dimension | 850×1050×2000mm | 850×1050×2000mm |
| Working table effective size | 420×620mm | 420×620mm |
| Column diameter | Φ104mm | Φ104mm |
| Spindle diameter | Φ70mm | Φ70mm |
| Spindle taper | JT6 | JT6 |
| Spindle nose to table | 220mm | 220mm |
| Spindle full stroke | 100mm | 150mm |
| Feed stroke control | 40/60/80mm | 40/60/80/100/130mm |
| Spindle speed | Optional | Optional |
| Spindle Motor power | 1.5Kw | 1.5Kw |
| Drilling capacity | S45C/16mm | S45C/16mm |
| Cooling system | Optional | Optional |
| Fixture system | Optional | Optional |
| Standard working pressure | 0.5MPa | 0.5MPa |
| Total weight | 300Kg | 320Kg |
For more product information, please visit our YouTube video channel and Download product files.
Our Service
1. Before payment
a. Fastly and professional reply to you about your questions for our special purpose machine.
b. Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
c. Free professional design for each customer especially.
d. Welcome to visit our factory.
2. After-Sales Service
We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.
3. Guarantee Period
One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine’s quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer’s factory on seller’s account if problem is serious and can’t be solved by Buyer.
4. Payment Terms
30% as deposit, 70% after the machine is ready before delivery.
5. Lead Time
Our delivery time generally it is 30-40 days if the machines are in stock, or it is 70-90 days if the machines are not in stock, it is according to quantity.
